SpecWorks
SpecWorks - Basic
1.4.0
Basic functions (see below),
Documentation, sample projects
and data
14-days trial version
Platform: Windows
SpecWorks - IMEKO
1.4.0
Basic functions + AddOn MSSens, SSR,
Documentation, sample projects
and data
60-days trial version
Platform: Windows
SpecWorks - Quickstart
How to work with SpecWorks?
SpecWorks-AddOn
MSSens
Multispectral Sensors:
Simulation-, Configuration-, Evaluation-Tools for multispectral Sensors, documentation, sample projects and data
SpecWorks-AddOn
SSR
Spectral Superresolution:
Spectral Calibration- and Evaluation-Tools for multispectral Sensors, documentation, sample projects and data
SpecWorks-AddOn
MULTI-LED
LED-based Lightings:
Simulation-, Configuration- and Evaluation-Tools für LED-Lightings, documentation, sample projects and data
Features
Toolbox for Visual prototyping and implementation
of spectral processing pipelines
Ergonomic, file-explorer-inspired data handling concept
Easy import, export and management of spectral data
Application specific AddOns MSSens, SSR, MULTI-LED
Customised application specific modules
on demand
Discounts possible for universities and research institutions
FAQ / HOWTO
The program starts with an error message „Die Nutzung des Lizenz-Softwareschutzes ist aktuell nicht möglich. …“.
The error message indicates that the installation of Specworks did not work properly on your system, may be due to user authorisation problems.
- Open the program in Administrator mode again. The software will try to fix the problem.
- If the problem persists, open the file explorer in Administrator mode and go to \ProgramData\ZBS e.V\SpecWorks\ .
Execute the file lpregister410.exe once.
If the problem persists, send us an eMail.
The color panel display does not work in the „Farborte anzeigen“ module.
There’s a problem in registering an OLE-control before using.
Open a console in the administrator mode and go to the
\ProgramData\ZBS e.V\ Specworks\ . Execute the following program line „regsvr32.exe ColorShow.ocx“ there.
How do I update the program if I have an own license?
That is easy!
If you only want to add a function, it is done normally by changing your license. In that case you will get another license file or a key which can be added to your license via the software.
In all another cases
- Open File Explorer and navigate to \ProgramData\ZBS e.V\SpecWorks\. To be save backup your license file SpecWorks.bin.
- Uninstall the program.
- Install the new version and start it. If the license conditions are’nt correct, replace the license file with your backup.
Data - Import / -Export (Basic)
Import- and Export-Tools of spectra and numerical data from different file formats:
Export in internal format for uniform data management of data from different sources, Export in common ASCII formats, Import by digitisation of data sheets.
Spectra manipulation and arithmetic (Basic)
Powerful, universally usable tools:
normalisation of data from different sources to uniform spectrum sampling and uniform range of values, spectrum extrapolation, spectrum filtering, spectrum point linking - and manipulation, spectrum and sensor simulation, spectrum sorting, multispectral processing and data generation. Spectrum compiler and script processing of spectra...many more
Multispectral arithmetic - Colormetry (Basic)
Simulation of multispectral observers, Calculation of colour space data from multispectral systems, colour space visualisation, calculation of colour rendering indices for light source spectra.
AddOn's - SSR, MSSens, MULTI-LED

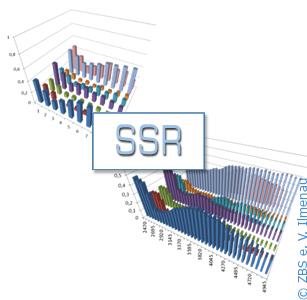

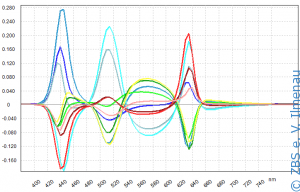

SSR (Spectral Superresolution from Multispectral Data):
Tools for classic spectral calibration and evaluation of multispectral sensors of any kind

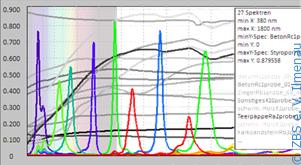

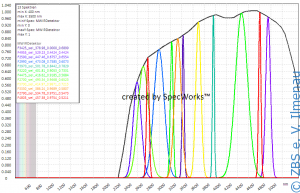

MSSens (Multispectral Sensors):
Tools for Design, Optimization and Evaluation of Multispectral Sensors

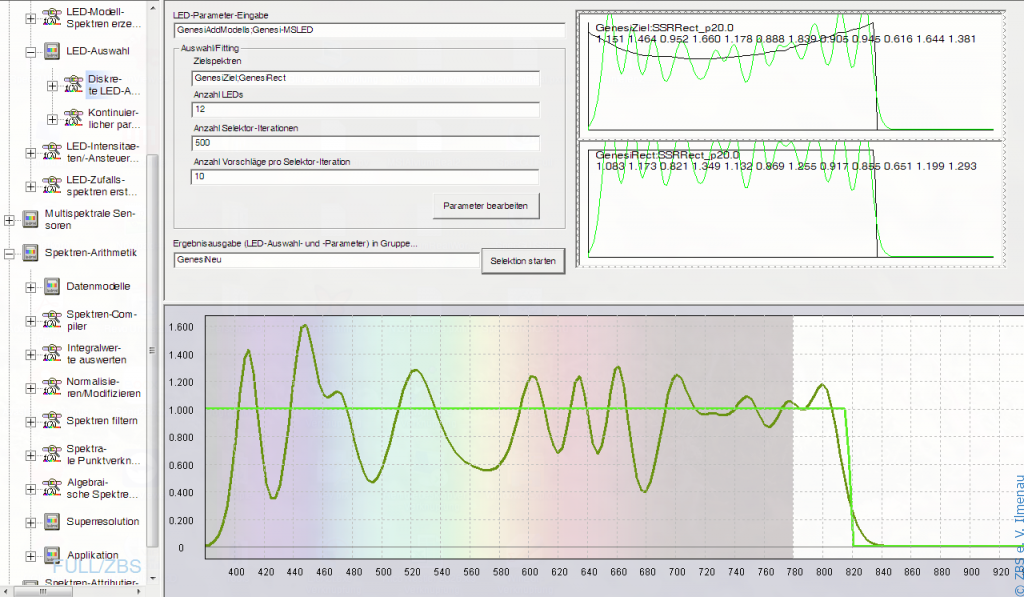

MULTI-LED (Multispectral LED-Lighting):
Tools for Design, Optimization and Evaluation of Lighting from Multi-LEDs
Ask for more!
Any Questions?
Update History
1.4.0 - Powerful new tools for dealing with multispectral systems
- A number of improvements to the user interface, spectrum diagrams can now be saved as PNG images
- english UI
1.3.9 - Option for spectrum digitisation added in case of logarithmic diagram display, minor improvements to the user interface
1.3.8 - Some minor GUI improvements (spectral display), a simple way to automatically color large spectrum collections for visualization added
1.3.6 - Some GUI improvements (graphic elements and tooltips) , definition range of the spectral display window is now limited to positive, more plausible wavelengths, spectrum compiler and script processing of spectra (preview)
1.3.5 - Some minor bug fixes and GUI improvements, improved data analysis of spectra (min-max position display in info window), Planck curves now both normalized and radiometrically calculable
